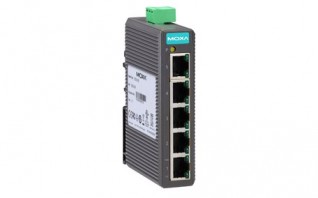

EDS-205 SERIES

Entry-level unmanaged Ethernet switch with 5 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature
eds-205-series
10/100BaseT(X) (RJ45 connector)
IEEE802.3/802.3u/802.3x support
Broadcast storm protection
DIN-rail mounting ability
-10 to 60°C operating temperature range

Ethernet Interface

  • Standards: IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) IEEE 802.3x for flow control
  • 10/100BaseT(X) Ports (RJ45 connector): 5 Full/Half duplex mode Auto MDI/MDI-X connection Auto negotiation speed

Switch Properties

  • Processing Type: Store and Forward
  • MAC Table Size: 2 K
  • Packet Buffer Size: 768 kbits

Power Parameters

  • Input Voltage: 24 VAC only for models with hardware version 3.0.0 or later
  • Input Current: 12 to 48 VDC, 0.06 to 0.02 A or 24 VAC, 50-60Hz, 0.07 A (max.)
  • Operating Voltage: 9.6 to 60 VDC, 18 to 30 VAC
  • Connection: 1 removable 3-contact terminal block(s)
  • Overload Current Protection: Supported
  • Reverse Polarity Protection: Supported
  • Power Consumption: 0.77 W (max.)
  • Connector: 1 removable 3-contact terminal block(s)

Physical Characteristics

  • Housing: Plastic
  • IP Rating: IP30
  • Dimensions: 24.9 x 100 x 74 mm (0.98 x 3.94 x 2.91 in)
  • Weight: 111 g (0.24 lb)
  • Installation: DIN-rail mounting

Environmental Limits

  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity: 5 to 95% (non-condensing)

Standards and Certifications

  • Safety: UL 61010-2-201 EN 62368-1
  • EMC: EN 55032/35
  • EMI: FCC Part 15B Class A
  • EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Freefall: IEC 60068-2-32

MTBF

  • Time: 18,921,624 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
EDS-205 Entry-level unmanaged Ethernet switch with 5 10/100BaseT(X) ports, plastic housing, -10 to 60°C operating temperature
