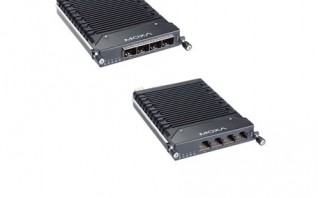

LM-7000H MODULE SERIES

Gigabit Ethernet module with 4 10/100/1000BaseT(X) IEEE 802.3bt PoE++ ports
lm-7000h-module-series
-40 to 85°C wide operating temperature
IEC 61850-3 and IEEE 1613 compliant
IEC 62439-3 Clause 4 (PRP) and Clause 5 (HSR) compliant
Hot-swappable

Ethernet Interface

  • PoE Ports (100/1000BaseT(X), RJ45 connector): 4V3.0.0 only for MDS-G4012/20/28 Series, MDS-G4012/20/28-L3 Series, MDS-G4012/20/28-4XGS Series, and MDS-G4012/20/28-L3-4XGS Series

Power Parameters

  • Power Consumption: 3.8 W (max.)

Physical Characteristics

  • Weight: 0.31 g (0.69 lb)

MTBF

  • Time: 1,280,518 hrs
  • Standards: Telcordia (Bellcore), GB

Warranty

  • Warranty Period: 5 years
  • Details: See www.moxa.com/warranty

Available Models

Model No. Description Quantity
LM-7000H-4GTX Gigabit Ethernet module with 4 10/100/1000BaseT(X) ports
LM-7000H-4TX Fast Ethernet module with 4 10/100BaseT(X) ports
LM-7000H-4GPoE Gigabit Ethernet module with 4 10/100/1000BaseT(X) IEEE 802.3af/at PoE+ ports
LM-7000H-4PoE Fast Ethernet module with 4 10/100BaseT(X) IEEE 802.3af/at PoE+ ports
LM-7000H-4GSFP Gigabit Ethernet module with 4 100/1000BaseSFP slots
LM-7000H-2GPHR Gigabit Ethernet module with 2 100/1000BaseT(X) PRP/HSR or 100/1000BaseSFP PRP/HSR combo ports, -40 to 75°C operating temperature
