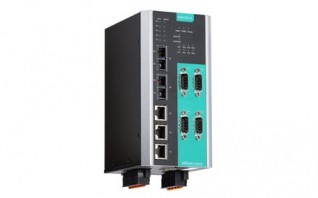

NPORT S9450I SERIES
4-port RS-232/422/485 rugged device server, 3 10/100BaseT(X) ports, 2 100M multi-mode fiber ports with SC connectors, 88 to 300 VDC or 85 to 264 VAC, -40 to 85°C operating temperature
4-port RS-232/422/485 serial interface
Supports up to 5 managed Ethernet switch ports (fiber ports available with some models)
Supports DNP3 and Modbus protocols
IEC 61850-3, IEEE 1613-compliant (for power substations)
Ethernet redundancy with Turbo Ring/Chain and RSTP/STP supported
Real COM and TTY drivers for Windows, Linux, and macOS
Supports IEC 61850 MMS protocol
-40 to 85°C wide operating temperature
Supports up to 5 managed Ethernet switch ports (fiber ports available with some models)
Supports DNP3 and Modbus protocols
IEC 61850-3, IEEE 1613-compliant (for power substations)
Ethernet redundancy with Turbo Ring/Chain and RSTP/STP supported
Real COM and TTY drivers for Windows, Linux, and macOS
Supports IEC 61850 MMS protocol
-40 to 85°C wide operating temperature
Input/Output Interface
- Alarm Contact Channels: 2 Resistive load: 1 A @ 24 VDC
- Digital Input Channels: 2
- Digital Inputs: +13 to +30 V for state 1 -30 to +1 V for state 0 Max. input current: 8 mA
Ethernet Interface
- 10/100BaseT(X) Ports (RJ45 connector): 3
- 100BaseFX Ports (multi-mode SC connector): 2
- Magnetic Isolation Protection: 1.5 kV (built-in)
- Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
- Optical Fiber: 100BaseFX
- Optical Fiber: Multi-Mode
- Optical Fiber: Single-Mode
- Optical Fiber: Fiber Cable Type
- Optical Fiber: OM1
- Optical Fiber: 50/125 µm
- Optical Fiber: G.652
- Optical Fiber: 800 MHz x km
- Optical Fiber: Typical Distance
- Optical Fiber: 4 km
- Optical Fiber: 5 km
- Optical Fiber: 40 km
- Optical Fiber: Wavelength
- Optical Fiber: Typical (nm)
- Optical Fiber: 1300
- Optical Fiber: 1310
- Optical Fiber: TX Range (nm)
- Optical Fiber: 1260 to 1360
- Optical Fiber: 1280 to 1340
- Optical Fiber: RX Range (nm)
- Optical Fiber: 1100 to 1600
- Optical Fiber: 1100 to 1600
- Optical Fiber: Optical Power
- Optical Fiber: TX Range (dBm)
- Optical Fiber: -10 to -20
- Optical Fiber: 0 to -5
- Optical Fiber: RX Range (dBm)
- Optical Fiber: -3 to -32
- Optical Fiber: -3 to -34
- Optical Fiber: Link Budget (dB)
- Optical Fiber: 12
- Optical Fiber: 29
- Optical Fiber: Dispersion Penalty (dB)
- Optical Fiber: 3
- Optical Fiber: 1
- Optical Fiber: Note: When connecting a single-mode fiber transceiver, we recommend using an attenuator to prevent damage caused by excessive optical power.Note: Compute the “typical distance” of a specific fiber transceiver as follows: Link budget (dB) > dispersion penalty (dB) + total link loss (dB).
- Standards: IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ad for Port Trunk with LACP IEEE 802.3u for 100BaseT(X) and 100BaseFX
Switch Properties
- IGMP Groups: 256
- Max. No. of VLANs: 64
- Priority Queues: 4
- VLAN ID Range: VID 1 to 4094
Ethernet Software Features
- Configuration Options: Web Console (HTTP/HTTPS) Windows Utility Device Search Utility (DSU) MCC Tool Command Line Interface (CLI) through Serial/Telnet/SSH
- Management: DHCP Client DHCP Option 82 HTTP IEC 61850 MMS IPv4 LLDP Port Mirroring RARP RMON SMTP SNMPv1/v2c/v3 Trap/Inform Syslog Telnet TFTP Web Console
- Filter: GMRP GVRP IGMP v1/v2
- Windows Real COM Drivers: Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NTWindows Embedded CE 5.0 and 6.0, Windows XP Embedded
- Linux Real TTY Drivers: Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
- Fixed TTY Drivers: macOS versions: 14, 13, 12, 11 and 10.1x SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
- Android API: Android 3.1.x and later
- Industrial Protocols: Modbus TCP Server (Slave) DNP3 TCP Outstation
- Time Management: NTP Server/Client SNTP
- MIB: Bridge-MIB Device Settings MIB Ethernet-like-MIB MIB-II P-BRIDGE MIB Q-BRIDGE-MIB RFC1213, RFC1317 RMON MIB Groups 1, 2, 3, 9 RSTP MIB
- Redundancy Protocols: RSTP Turbo Chain Turbo Ring v1 Turbo Ring v2
- Security: HTTPS/SSL Local Account Accessibility TACACS+ RADIUS SSH
- Virtual Machine: VMWare ESXi (Windows 11 / 10)VMware Fusion (Windows on macOS 14, 13, 12, 11 and 10.1x)Parallels Desktop (Windows on macOS 14, 13, 12, 11 and 10.1x)
- Arm®-based Platform Support: Windows 11Linux Kernel 6.x, 5.x and 4.xmacOS 14, 13, 12 and 11
Serial Interface
- Connector: DB9 male
- No. of Ports: 4
- Serial Standards: RS-232 RS-422 RS-485
- Operation Modes: Real COM mode RFC2217 mode TCP Client mode TCP Server mode UDP mode Modbus mode DNP3 mode DNP3 Raw Socket mode Disabled
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None RTS/CTS XON/XOFF
- Isolation: 2 kV
- Surge: 4 kV
- RS-485 Data Direction Control: Automatic Data Direction Control (ADDC)
- Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms
- Terminator for RS-485: 120 ohms
- Console Port: RS-232 (TxD, RxD, GND), 10-pin RJ50 (19200, n, 8, 1)
Serial Signals
- RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- RS-485-2w: Data+, Data-, GND
DIP Switch Configuration
- Ethernet Interface: Turbo Ring Master Coupler Reserved
Modbus TCP
- Max. No. of Client Connections: 32
- Max. No. of Server Connections: 16
DNP3 (Transparent)
- Max. No. of Master Connections: 16
- Max. No. of Outstation Connections: 32
Power Parameters
- No. of Power Inputs: 2
- Power Connector: 1 removable 5-contact terminal block(s)
- Reverse Polarity Protection: Supported
- Input Current: 80 mA @ 110 VDC
- Input Voltage: 110/220 VAC/VDC (110 to 220 VAC, 110 to 220 VDC)
Physical Characteristics
- Housing: Metal
- Dimensions: 80 x 160 x 109 mm (3.15 x 6.30 x 4.29 in)
- Weight: Product Only: 2.54 kg (5.60 lb)
- Installation: DIN-rail mounting Wall mounting (with optional kit)
Environmental Limits
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Storage Temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 61000-6-2/-6-4
- EMI: CISPR 32, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 6 kV; Signal: 4 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m IEC 61000-4-8 PFMF IEC 61000-4-11
- Environmental Testing: IEC 60068-2-2 IEC 60068-2-14
- Power Substation: IEC 61850-3 IEEE 1613
- Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D
- Safety: EN 61010-2-201 UL 61010-2-201
- Shock: IEC 60068-2-27
- Vibration: IEC 60068-2-6 IEC 60068-2-64
Declaration
- Green Product: RoHS, CRoHS, WEEE
MTBF
- Time: 347,436 hrs
- Standards: Telcordia Standard SR-332
Warranty
- Warranty Period: 5 years
- Details: See www.moxa.com/warranty
